6V Solar Panel - Setup & Use

Not sure if this is your device? This article is for the 6V Solar Panel (SKU/Product #: MFA-15110 & MFP-80213).
Double-check this info or click here to visit our "Identify My Device" page before you continue.

Getting Started

Congratulations! Now that you have your 6V Solar Panel, continue reading to learn how to get it up and running!

Connecting the Panel

The type of cable included with your panel depends on how it was purchased:

• Panel purchased separately: Comes with a cable designed for tab-top batteries.
• Panel included with a feeder bundle: Comes with a cable designed for barrel jacks.

Refer to the images below for visual examples of each connection type.

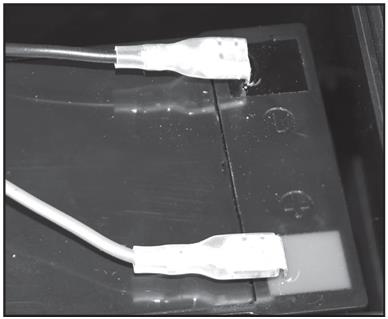

Tab Top Battery Connection Steps

1. Remove the rubber plug labelled "SOLAR PANEL" and route the solar panel connectors through the solar panel port until the plug properly seals to prevent water from getting inside the feeder kit.
2. Connects directly to the positive and negative battery terminals.
3. Ensure correct polarity (Red = Positive, Black = Negative).

Barrel Jack Connection Steps (For use with FieldNode feeder kits that have a barrel jack input for external power)

• Plugs directly into the external power port on your feeder kit.
• This port is located behind the rubber plug labelled "SOLAR". Remove the plug to connect the solar panel barrel jack.
• Ensure that the seal plug is seated all the way to prevent water from getting inside the feeder kit.

Mounting Best Practices

• Face solar panels south for optimal sun exposure.
• Secure the external power option to the feeder or another stable surface using the provided strap or another safe mounting method.
• If mounting to a tree or elevated location, place it high enough to avoid animal interference and away from obstructions.
• Ensure all cables and ports are securely connected and protected from the elements.
